         NetObjects Stack Page "Linking" Guide.

(1) Using Images On Stack Pages.
(2) Live E-Mail Links On Stack Pages.
(3) Shopping Cart Links With Graphics On Stack Pages.


Images
Step 1.

Using Images In Stack Pages.
Database View



In This Example, The Excel Database Contains A Path To The Graphics
Located On The Local Hard Drive.
 Do Not Try To Place The Actual Image Into The Database Just The Path


Images
Step 2.

Registering The Image Field.

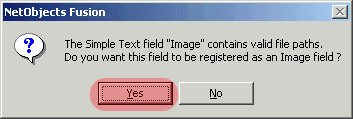

When The Data List Is Place Onto The Page, You Will Be Asked
"Do you want this field to be registered as an Image field?"
 Answer Yes.
Images Are Now Automatically Placed On Each Stack Page If You
Select "Display All Fields."

E-Mail
Step 1.

Live E-Mail Links On Stacked Pages.

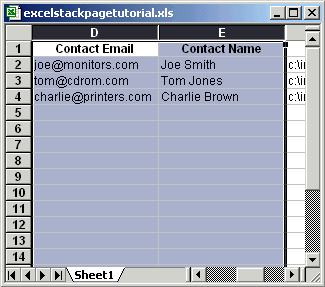

Database View



To Create A Live E-Mail Link On A Stack Page, Two Data Items Are Needed,
 (1) The E-Mail Address (Column D Here) And (2) The E-Mail Person's Name (Column E Here).
The Database Column Names Can Be Any Name Of Your Choosing.


E-Mail
Step 2.

Place A Text Box.



Place A Text Box Onto The Layout To Become The E-Mail Link.

E-Mail
Step 3.

Insert HTML.

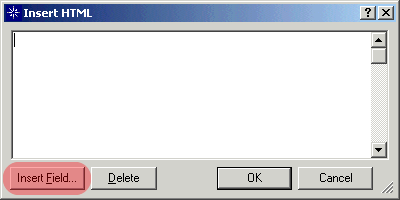

Press The Control Key Plus The T Key To Open The Insert HTML Palette.
Click The Insert Field Button To Open The Insert Field Palette.

E-Mail
Step 4.

Selecting Data Object Fields.

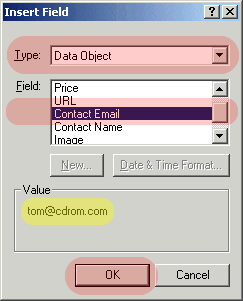

Select From Type: Data Object. Select From Field: Contact E-Mail.
Note The Selected Value Is Shown (Yellow).
Click OK.

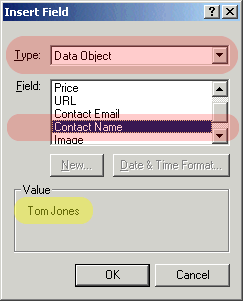

Select From Type: Data Object. Select From Field: Contact Name.
Note The Selected Value Is Shown (Yellow).
Click OK.

E-Mail
Step 5.

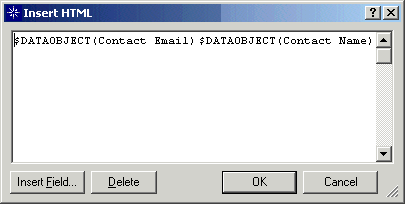

Insert HTML With DataObject Fields.



The DataObject Fields Are Now In Place But Require Additional Code To Become Live Links.

E-Mail

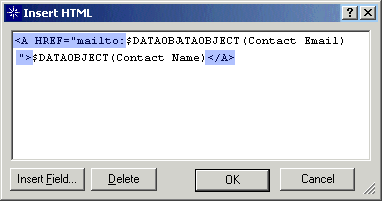

Step 6.

Insert HTML With DataObject Fields And Additional Code.



Type In The Code As Shown Above In Blue To Complete The Linking.
Click OK.



The Text Box Does Not Show The Link Until Previewed Or Published, But Note The Text Box Contains An Icon.



Upon Publish Or Preview, A Live E-Mail Link !

Cart Link
Step 1.

Live Shopping Cart Links On Stacked Pages.

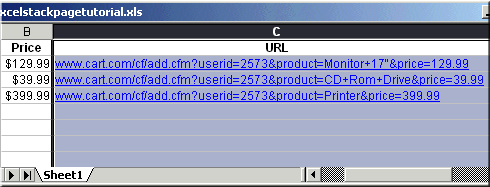

 Database View.



The Excel Database Contains A Link To The Shopping Cart URL (Column C),
Begin Your Links With www.

Cart Link
Step 2.

Live Shopping Cart Links On Stacked Pages.

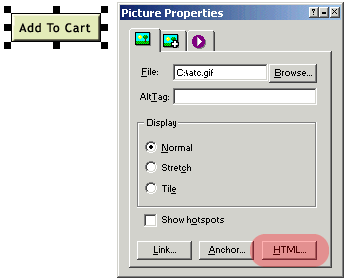

 Using A Graphic Button To Make Shopping Cart Links.



Place A Cart Button Onto The Stack Page. Placing On One Page
Automatically Places On All Stack Pages.
Click The HTML Button To Open The HTML Palette.

Cart Link

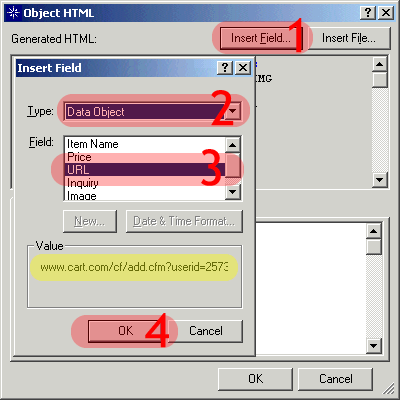

Step 3.

Inserting The Cart Data Object.



In The Object HTML Palette, Click (1), Insert Field.
The Insert Field Palette Will Open And Then Select (2) Type: Data Object, (3)  Field: URL.
Note The Cart URL Shows In Value (Yellow).
Click (4) OK.

Cart Link
Step 4.

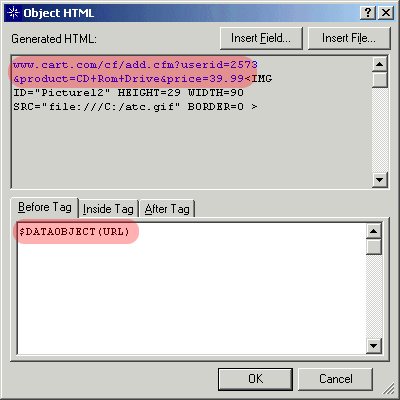

Cart HTML With Data Object.



Object HTML Palette Shown With Data Object Inserted.
Additional Code Is Required To Make It A Live Link.

Cart Link
Step 5.

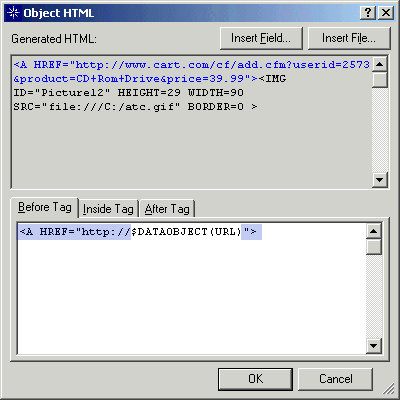

Cart HTML With Data Object And Additional Code.



Type In The Code As Shown Above In Blue To Complete The Linking.
Click OK.
You Now Have Live Shopping Cart Links On Each Stack Page.

Note The Additional Icon On The Button.
